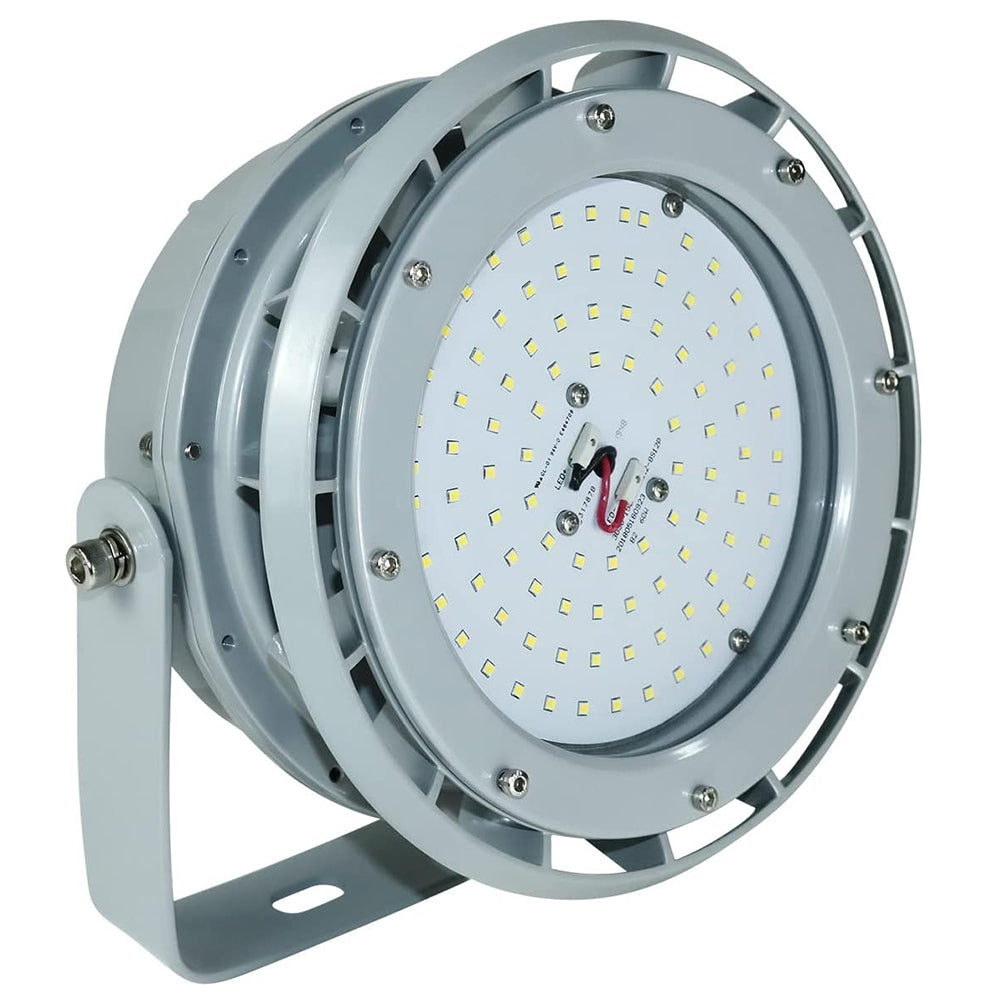

High Bay Explosion Proof LED Light 60W 80W 5000K 100-277V 0-10V Dimmable Class I Division 2 UL844 Hazardous Lighting Fixture, ETL DLC Listed
High Bay Explosion Proof LED Light 60W 80W 5000K 100-277V 0-10V Dimmable Class I Division 2 UL844 Hazardous Lighting Fixture, ETL DLC Listed
In stock
Regular price
$288.00
Regular price
Sale price
$288.00
Unit price
/
per
Shipping calculated at checkout.
Couldn't load pickup availability
Shipping: US free shipping
Shipping by: FedEx UPS
Delivery time: 2-4 business days after payment
Bigger Quantity Cheaper Price
For Wholesale and Custom Order, Please Contact sales@choierlight.com
| Minimum Same Variant Quantity | Discount |
| 20-49 | 3% |
| 50-99 | 5% |
| 100+ | 8% |

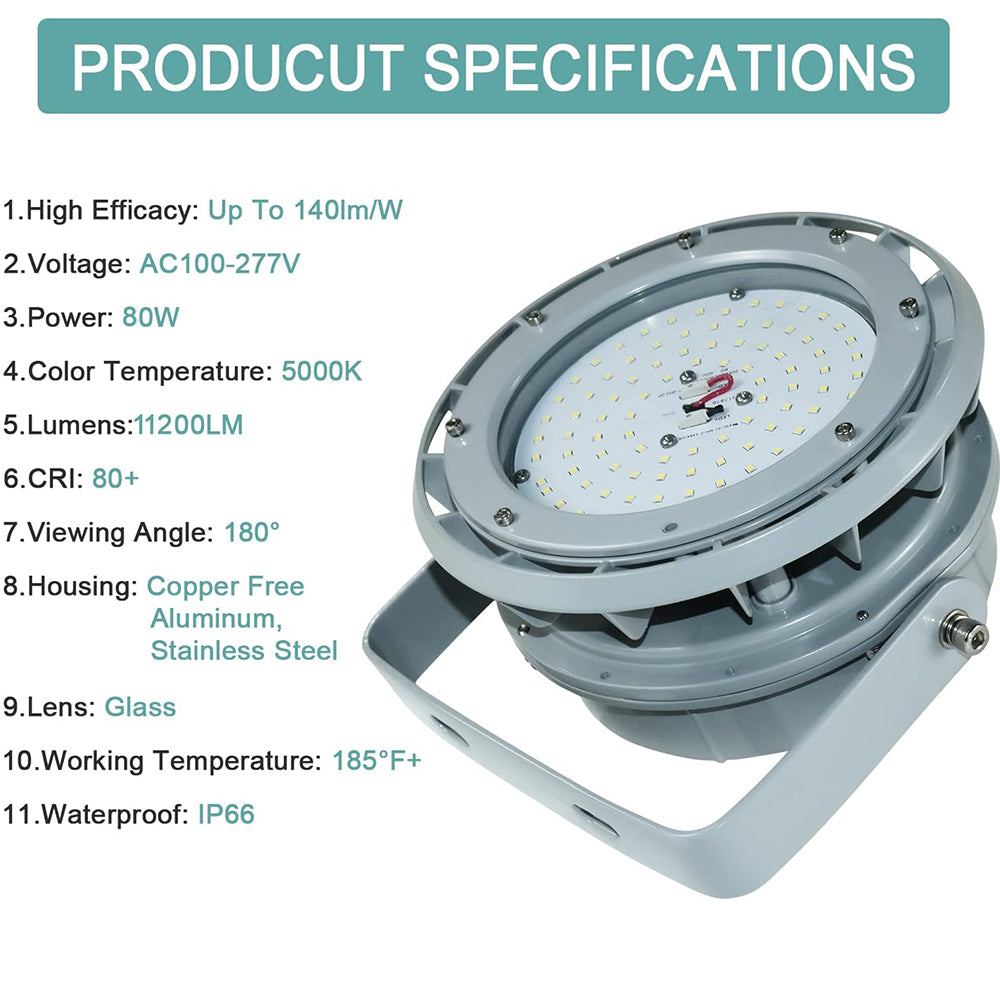

LED Explosion Proof Light Spec:
- Available Wattage: 60W 80W
- Watt equivalent: 120-240W MH HPS HID(60W), 160-320W MH HPS HID(80W)
- Color Temperature Available: 5000K daylight
- Lumen: 8400LM(60W), 11200LM(80W)
- Beam Angle: 120degree
- Lifespan: 50,000 hours
- Voltage: 100-277V 50/60Hz
- Power source: corded-electric
- Working temperature: -40℉ – 131℉
- Power factor: >90%
- Photocell: no photocell
- Dimmable: 0-10v dimming
- Housing: Copper-free aluminum
- Lens: Tempered glass
- Hardware & Mounting Bracket: Stainless steel
- Shell Finish Color: gray

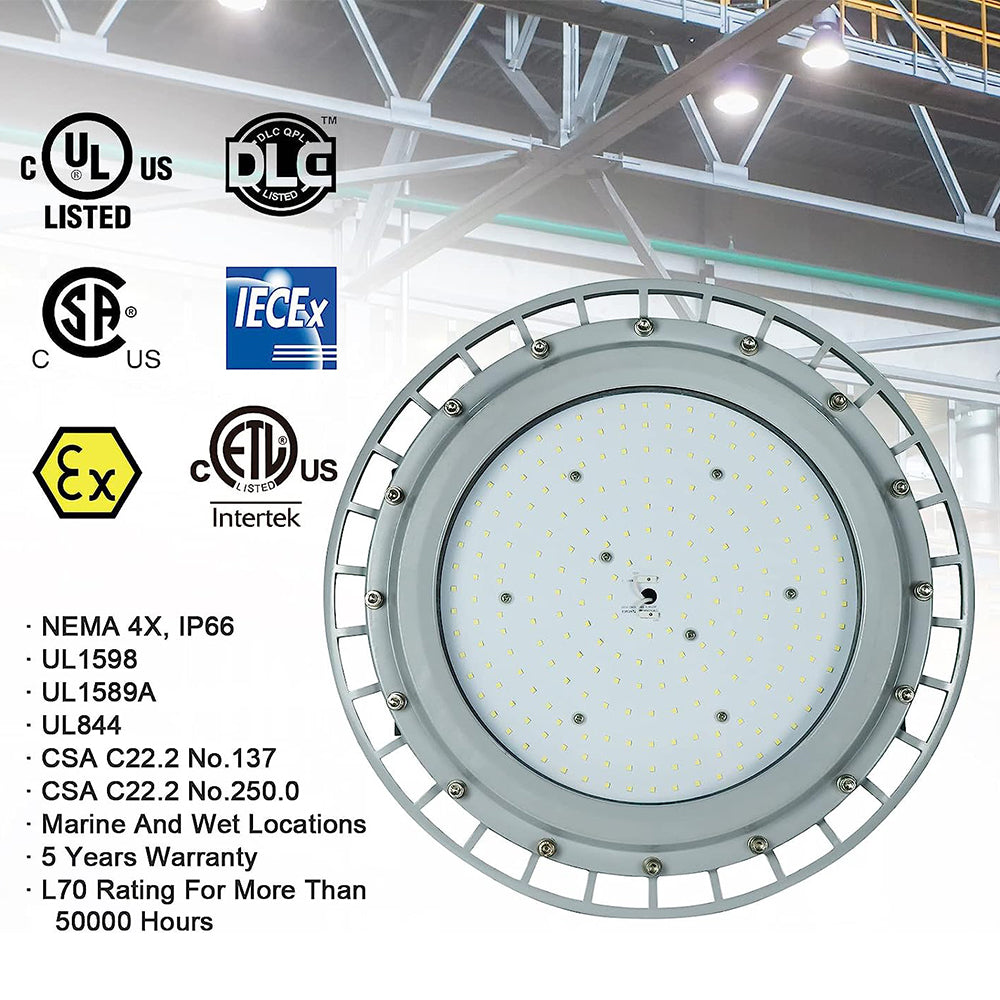

- ETL, cETL, DLC approved
- 5 years of Manufacturer's Warranty
- Marking ATEX: II 2 G Ex mb eb IIC T4 Gb；II 2 D Ex tb IIIC T120°C Db Ip66；II 3 G Ex ec IIC T3 Gc；II 2 D Ex tb IIIC T85°C Db Ip66
- Marking UL844 (North American): Class I, Division 2, Groups A, B, C, D；Class II, Division 1, Groups E, F, G; Class II, Division 2, Groups F, G; Class III
- Marking IECEx: Ex mb eb IIC T4 Gb; Ex tb IIIC T120°C Db Ip66; Ex ec IIC T3 Gc; Ex tb IIIC T85°C Db Ip66
- Marine Marking: UL 1598; UL1598A; ABS
- IP66

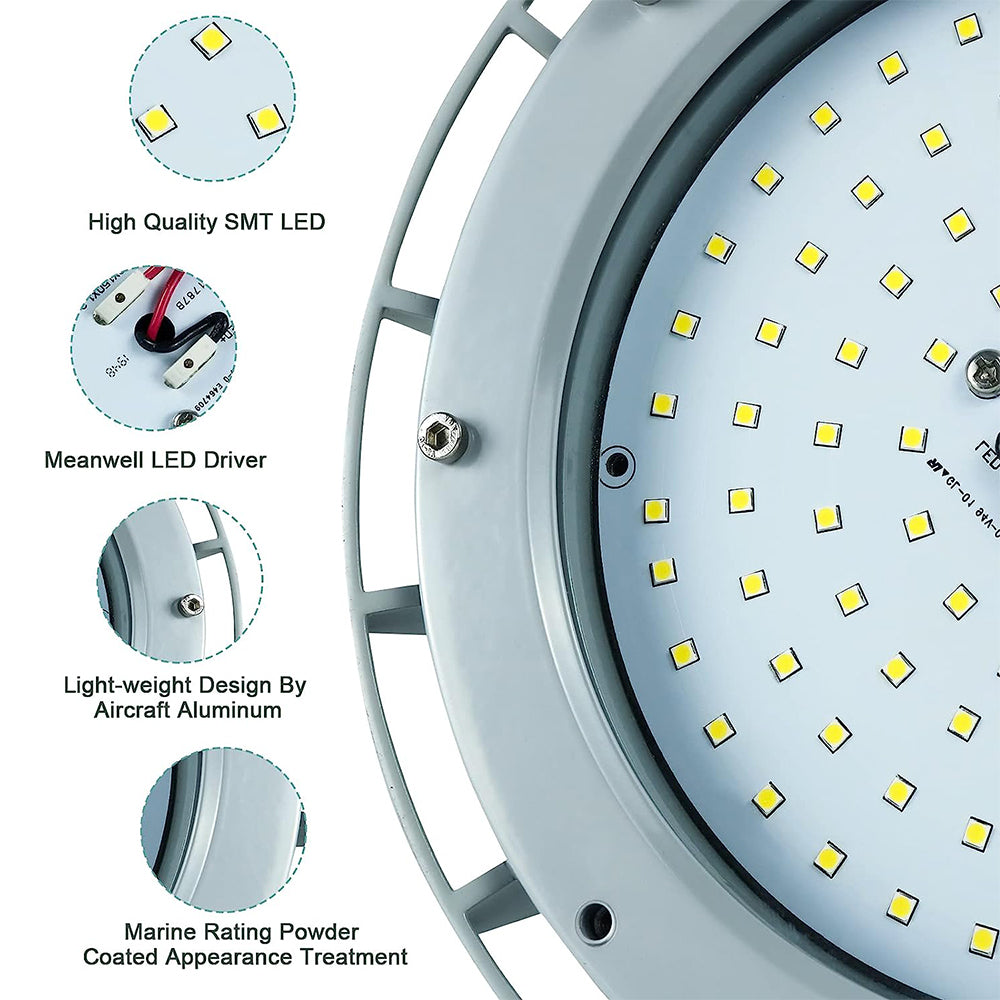

LED Hazardous Lighting Features:
- Dimmable and battery backup function is available.
- High-quality SMT LED and Meanwell driver.
- Heavy-duty and high impact resistance.
- Replaceable LED board and drivers.
- Integrated junction box for driver.
- Marine rating powder coated finish treatment.

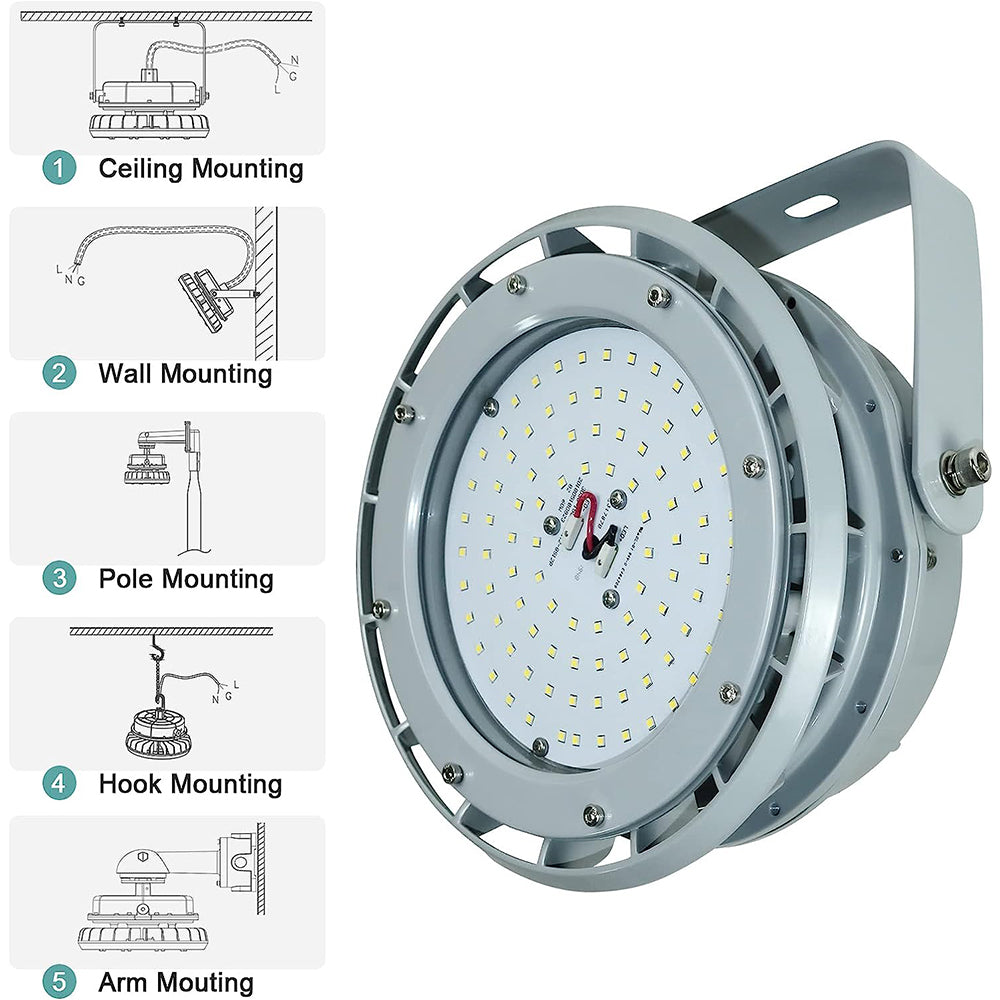

- Various installation ways for different applications.
- Glass lens or polycarbonate lens for making different beam angles.
- Low temperature applications to -40°C (-40°F) and high temperature up to 55°C (131°F).
LED Explosion Proof Lighting Application:
1. Oil and gas industry
- All petroleum production and refifining
- Petroleum loading and transportation
- Petroleum storage and retail
- LNG industry
- All mining operations and service
2. Ocean, marine and aerospace fifield
- Ocean platform operation facilities
- Ocean vessel operations
- Aerospace clean room and production
3. Food and alcohol industry
- Flour and fifine particle production and storage
- Food and distilling production
- Alcohol industry
4. Chemical industry
- All types of paint facilities
- Chemical production and storage
5. Metal treatment
- Steel and aluminum factories
- Pumping stations in any environment
- Metal smelting, foundry and fabrication
6. Other high humidity, high dust, high temperature, vapor locations.
Download Spec Sheethttps://cdn.shopify.com/s/files/1/0692/4245/4334/files/Temporary-Work-Light-V4.9.pdf?v=1672109540
